D- FLEX SC 520

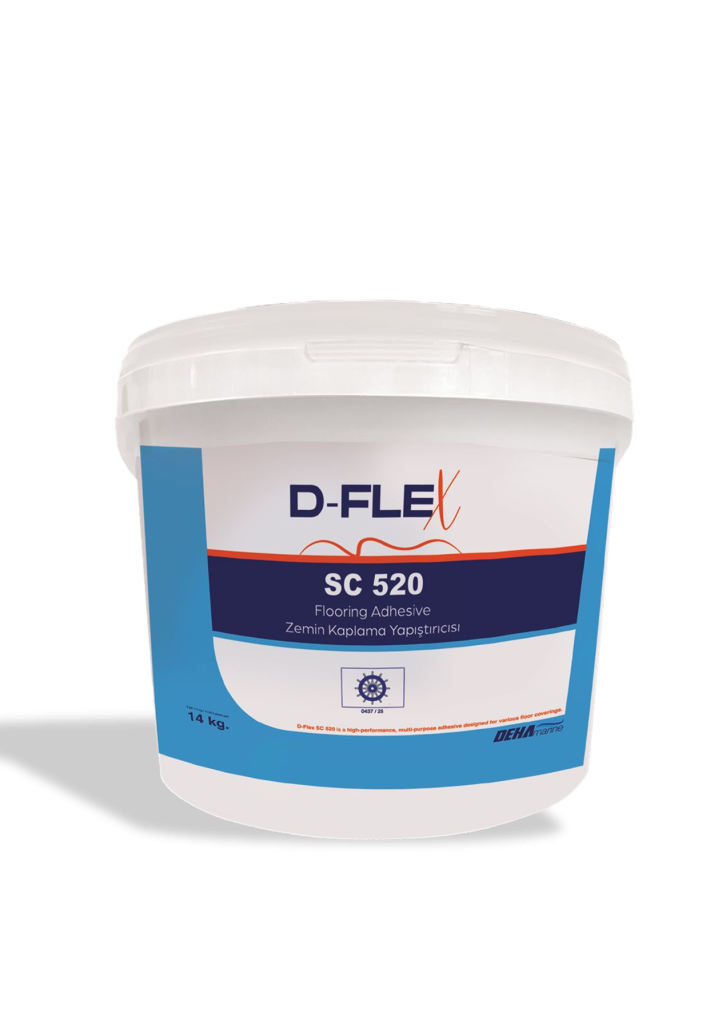

D- FLEX SC 520 Flooring Adhesive

D- FLEX SC 520 Flooring Adhesive

D-FLEX SC 520 is a high-performance marine adhesive widely used in shipbuilding. As a reliable flooring adhesive, it provides strong bonding, easy application, and long-lasting results. Being a MED-certified product, it ensures compliance with international safety and quality standards. Ideal for ship flooring and professional marine applications.

Application Areas:

D-Flex SC 520 is a versatile adhesive suitable for a wide range of floor coverings and substrates. It is designed for use in both residential and commercial spaces, offering high performance and durability across various flooring types.

Compatible Floor Coverings

Key Advantages of D-Flex SC 520

Substrate Preparation

  • Vinyl (sheet & tile)
  • Rubber (sheet & tile up to 4 mm)
  • Carpet with standard backing
  • Linoleum (up to 3 mm)
  • Cushioned vinyl (sheet & tile)
  • Luxury Vinyl Tile (LVT)
  • Vinyl Composition Tile (VCT)
  • Residential & commercial spaces
  • Porous & non-porous surfaces
  • Cement-based self-leveling compounds & patches
  • Properly prepared, primed gypsum (ASTM F2419 compliant)
  • Resilient insulating & soundproof underlays
  • Radiant heating systems (hydronic & electric)
  • Multi-purpose adhesive for various flooring types
  • Strong resistance to moisture and plasticizers
  • High solids content ensures excellent bonding
  • Wide coverage for cost-efficient application
  • Low VOC (< 20 g/l), meets SCAQMD Rule 1168
  • EMICODE-certified for strict indoor air quality standards
  • Compliant with California Section 01350
  • Supports LEED v4 (EQc2 - Low Emitting Materials)
  • Works in environments with up to 85% RH
  • Reduces material shrinkage risk
  • Strong, durable adhesion for long-term reliability
  • Eco-friendly and contributes to healthier indoor spaces
  • Must be stable, dry, crack-free and clean (no dust, grease, oil, paint, or wax).
  • Moisture levels must meet industry standards before installation.
Packaging
  • 1 (4.7 kg / 3.9 l) plastic pail
  • 3 (14 kg / 11.35 l) plastic pail
  • Shelf Life: 12 months (in original packaging, 73°F / 23°C)
  • Color: White
  • 1 pail: 75 – 210 sq. ft.
  • 3 pail: 225 – 630 sq. ft.
  • Per gallon: 75 – 210 ft. (239 – 676 g/m²)
  • Floor Temperature: 65°F (10°C)
  • Ideal Floor Temperature: 64 – 77°F (18 – 25°C)
  • Flash Time: See coverage section
  • Working Time: 15 min – 2 hours*
  • Set to Traffic: 24 – 72 hours*
  • Final Strength: 5 days*
  • Welding / Sealing Joints: 24 hours*
  • Flash Point (ASTM D56): > 300°F (> 150°C)
  • Percent Solids: > 70%
  • VOC Content: < 20 g/l (Compliant with SCAQMD Rule 1168)
  • *Based on 70°F (21°C) and 65% relative humidity. Flash & working times may vary with temperature, humidity, and substrate
Pre-Installation Requirements
  • Maintain 65°F (18°C) minimum in the work area 48 hours before, during and after installation.
  • Use the recommended notched trowel for adhesive
  • For wet-set installations, ensure the adhesive is moist to the touch before laying flooring.
  • Apply the correct adhesive amount based on job
  • Place the material into the adhesive
  • Roll with a 100 lb. roller in both
  • Ensure lifting edges or curled ends are pressed down during
  • Position tiles into the adhesive and roll within 15 minutes using a 100 lb. roller in both directions.
  • Avoid indentations by working off the flooring or using knee
  • Ensure at least 80% adhesive transfer to the floor

 After troweling, roll the adhesive with a short nap roller (lightly coated with adhesive) to flatten ridges and prevent them from showing through the finished floor.
